97 SHO does speedo, speed control, and trans. shifting based on vehicle speed read by Wheel Speed Sensors and sent out by ABS module. No VSS on Trans. Here's the test procedure:

G1 Check Speedometer
Road test vehicle
Is speedometer operating?
Yes
Go to G2
No
Go to G5
G2 Check The Odometer Reading
drive vehicle over a known distance
Is odometer reading inaccurately?
Yes
Go to G3
No
Go to G4
G3 Check Speedometer Accuracy
Drive vehicle at a steady speed over a 0 km (16 mile) distance and record the total distance travelled.
Does speedometer meet speedometer calibration tolerance specification?
Yes
System OK
No
REPLACE speedometer assembly
G4 Check SARC Vehicle Speed PID
connect Rotunda New Generation Star Tester or equivalent to data link connector C229 beneath instrument cluster.
Access SARC PID: VSS_SRC. Refer to Suspension Control for procedure and entre PID list.
Drive vehicle.
Observe vehicle speed via PID VS_SRC
Does vehicle speed indicated in PID: VSS_SRC reflect approximate vehicle speed?
Yes
Go to G5
No
SERVICE Circuit 679 (GY/BK). Go to Antilock Brakes / Traction Control Systems.
G5 Check Circuit 679 (GY/BK) For Open Circuit
Using an ohmmeter connect one lead to Circuit 679 (GY/BK) at anti-lock brake control module connector Pin C1057 and the other lead to instrument cluster Pin C251, Circuit 679 (GY/BK).
Measure resistance.
Is resistance less than 5 ohms?
Yes
GO to G6.
No
SERVICE Circuit 679 (GY/BK) for open circuit. RESTORE vehicle. RETEST system.
G6 Check Circuit 398 (BK/Y) Ground
Connect ohmmeter to instrument cluster connector Pin C250 , Circuit 398 (BK/Y).
Measure resistance to known good ground.
Is resistance 5 ohms or less?
Yes
GO to G7.
No
SERVICE Circuit 398 (BK/Y) for open circuit. RESTORE vehicle. RETEST system.
G7 Check Clip To Cluster Circuit Connector
Disconnect instrument cluster connectors C250 and C251
Using an ohmmeter, measure resistance of speedometer indicator terminals to printed circuit where they seat.
Is resistance 1 ohm or less at each indicator terminal?
Yes
GO to G8.
No
REPLACE contact clips. RESTORE vehicle. RETEST system.
G8 Check Printed Circuit
Reconnect cluster connectors.

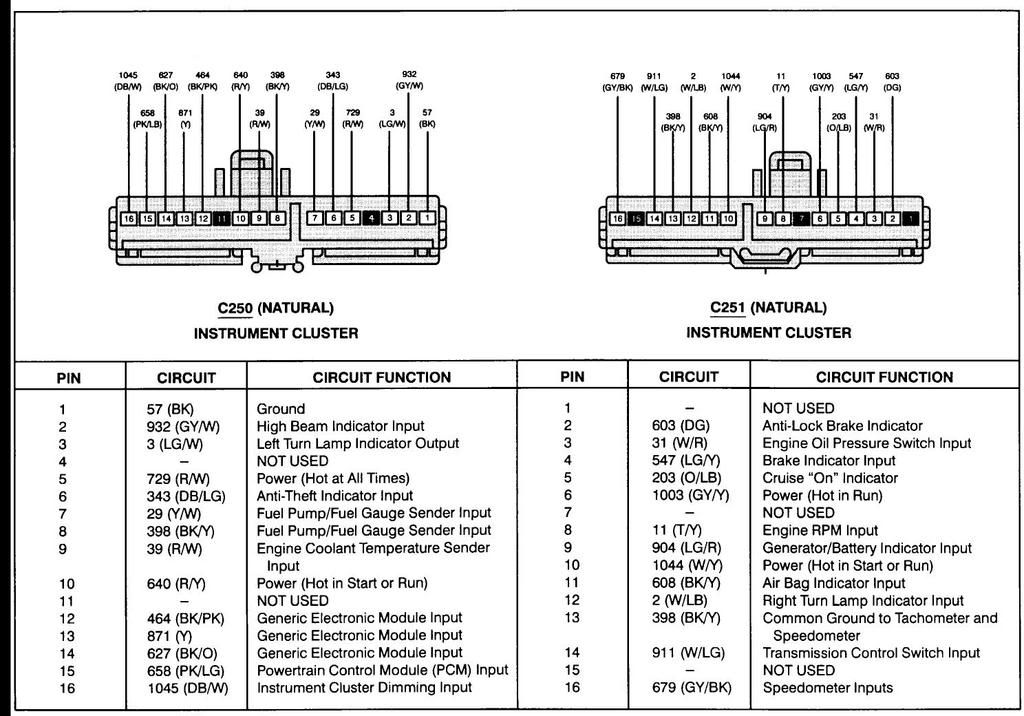

Using an ohmmeter, measure resistance from speedometer contact clips to instrument cluster connector according to chart.
Pin/Clip Function
C251 Power Input (RUN)
C250 Ground
C251 Vehicle Speed Input Signal
Is resistance less than 1 ohm?
Yes
REPLACE speedometer assembly. RESTORE vehicle. RETEST system.
No
REPLACE instrument cluster printed circuit. RESTORE vehicle. RETEST system.
A note, the ABS Module is under the battery tray, make sure there is no acid or corrosion on the module connector terminals.
