Old 05-02-2012, 15:56   #1 (permalink)
Subaru/Ford guy.

djzx3's Avatar

Join Date: Mar 2011
Posts: 1,283
Garage
Arrow D23 motor mount destroyed. lol

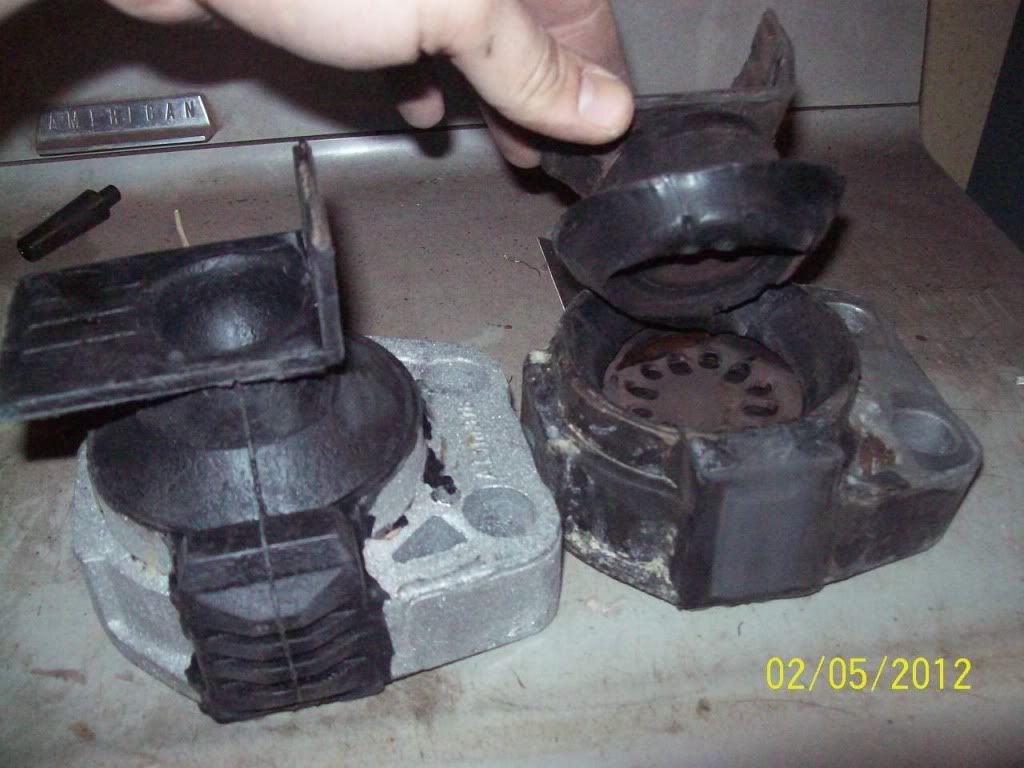

Just wanted to share this, it has been causing a rattling that lead me to believe it was other suspension parts for a month, but I finally decided to take it off, and this is what I found.lol


Got a fix from Napa though, came with a year warranty.

Just painting up a few things, then I will be lining the motor back up.
__________________
2000 focus wagon 2.0l DOHC Zetec
04 Subaru WRX,:)



How-to directory.

Ford focus DTC codes.

Ford= First on race day.
djzx3 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 05-04-2012, 04:46   #2 (permalink)
Moderators

Join Date: Apr 2007
Location: Scotland
Posts: 9,197
Re: D23 motor mount destroyed. lol

Apart from noise , surprised you didn't feel engine / power unit " kicking " which is a normal symptom and complaint when mount is as bad as that .
R.S.LOGAN is offline   Reply With Quote
Old 05-04-2012, 13:06   #3 (permalink)
Subaru/Ford guy.

djzx3's Avatar

Join Date: Mar 2011
Posts: 1,283
Garage
Re: D23 motor mount destroyed. lol

I didn't feel no kicking, cause my trans mount and dog-bone mount are new.


I did hear a clunk a day before I changed it, but other then that, it was really leading me and friends to think strut.
__________________
2000 focus wagon 2.0l DOHC Zetec
04 Subaru WRX,:)



How-to directory.

Ford focus DTC codes.

Ford= First on race day.
djzx3 is offline   Reply With Quote
Old 05-23-2012, 15:21   #4 (permalink)
Registered User

Join Date: Apr 2012
Posts: 22
Re: D23 motor mount destroyed. lol

Is that your rear Engine mount and is that under the Air filter housing
chrisoroe is offline   Reply With Quote
Old 05-23-2012, 15:23   #5 (permalink)
Subaru/Ford guy.

djzx3's Avatar

Join Date: Mar 2011
Posts: 1,283
Garage
Re: D23 motor mount destroyed. lol

no chrisoroe, the mount you are seeing in my pic up there^, is the motor mount which is located on the passenger side, under the coolant bottle.

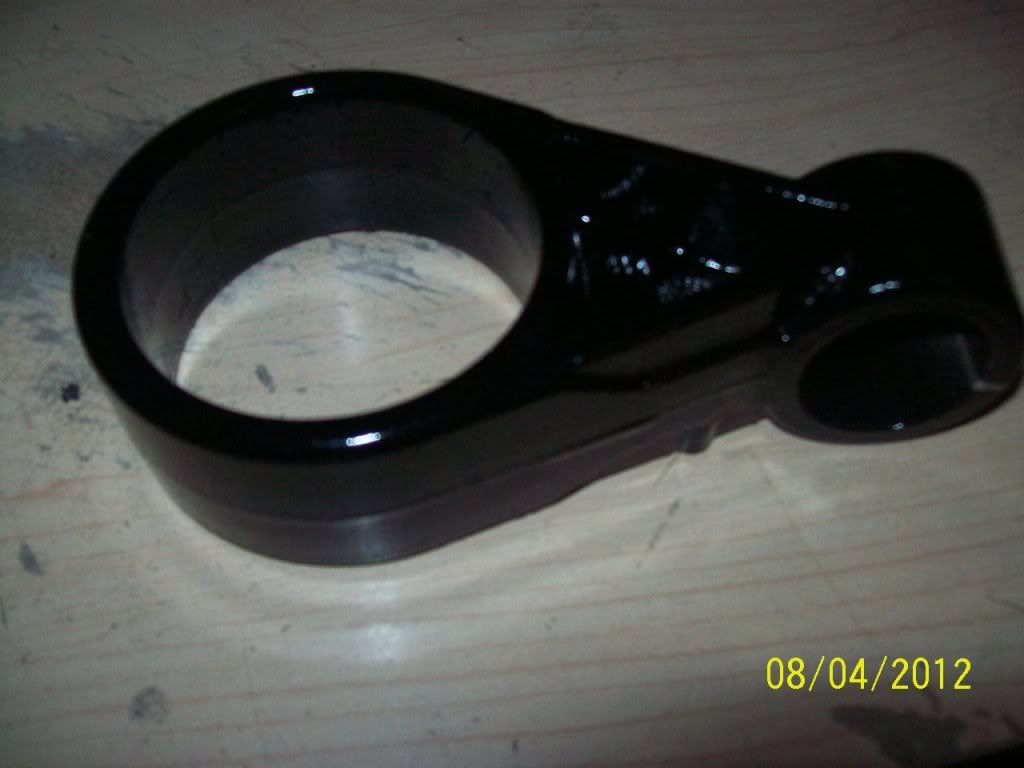

The "rear engine mount", which is refereed to as the torque mount or dogbone mount, looks like this.


But with bushings in it. I removed mine for poly replacements. This is found from looking under the car, it is connected to the trans and sub-frame.

Now the only other one is the trans mount, and it is located under the; (in the Zetec's case) under the air filter housing. (in the case of the Duratec's), it is under the battery/battery box.
__________________
2000 focus wagon 2.0l DOHC Zetec
04 Subaru WRX,:)



How-to directory.

Ford focus DTC codes.

Ford= First on race day.

Last edited by djzx3; 05-23-2012 at 17:53. Reason: Make it better.
djzx3 is offline   Reply With Quote
Old 05-25-2012, 20:48   #6 (permalink)
Registered User

Join Date: Apr 2012
Posts: 22
Re: D23 motor mount destroyed. lol

OK thanks I need a new transmission mount then. I will check my front and rear engine mount. where is the best place to buy engine and transmission mounts at
chrisoroe is offline   Reply With Quote
Old 05-25-2012, 21:02   #7 (permalink)
Subaru/Ford guy.

djzx3's Avatar

Join Date: Mar 2011
Posts: 1,283
Garage
Re: D23 motor mount destroyed. lol

Well, why do you need to replace the trans mount? Are you getting a lot of engine movement when accelerating or something?

And all these parts can be found on RockAuto.com, Napa, Autozone, Advance auto parts, and more.

EDIT: And there is no front mount, there is motor mount(passenger side), torque mount(under the car, towards back), and trans mount(on driver side).
__________________
2000 focus wagon 2.0l DOHC Zetec
04 Subaru WRX,:)



How-to directory.

Ford focus DTC codes.

Ford= First on race day.
djzx3 is offline   Reply With Quote
Old 05-26-2012, 15:11   #8 (permalink)
Registered User

Join Date: Apr 2012
Posts: 22
Re: D23 motor mount destroyed. lol

Quote:
Originally Posted by djzx3 View Post
Well, why do you need to replace the trans mount? Are you getting a lot of engine movement when accelerating or something?

And all these parts can be found on RockAuto.com, Napa, Autozone, Advance auto parts, and more.

EDIT: And there is no front mount, there is motor mount(passenger side), torque mount(under the car, towards back), and trans mount(on driver side).
OK and when i toke off the Air filter housing when i was replacing the Starter.
The transmission mount looked all worn out. when I replace the transmission it should fix my vibration my car has i will also check both engine to they may cause the vibration but idk yet.
chrisoroe is offline   Reply With Quote
Old 05-26-2012, 15:15   #9 (permalink)
Subaru/Ford guy.

djzx3's Avatar

Join Date: Mar 2011
Posts: 1,283
Garage
Re: D23 motor mount destroyed. lol

Okay well, if it looks all dried out and cracked, then it might be a good time to replace it.

Usually you can start seeing focus mount's fail or get cracked and dried out at around 100k-120k
__________________
2000 focus wagon 2.0l DOHC Zetec
04 Subaru WRX,:)



How-to directory.

Ford focus DTC codes.

Ford= First on race day.
djzx3 is offline   Reply With Quote
Old 05-27-2012, 13:26   #10 (permalink)
Registered User

Join Date: Apr 2012
Posts: 22
Re: D23 motor mount destroyed. lol

Quote:
Originally Posted by djzx3 View Post
Okay well, if it looks all dried out and cracked, then it might be a good time to replace it.

Usually you can start seeing focus mount's fail or get cracked and dried out at around 100k-120k
I will when i look at both my engine mounts and my transmission looks all dried out and cracked. Do you think if i just replace my transmission mount it will fix my vibration.
chrisoroe is offline   Reply With Quote
